Usage

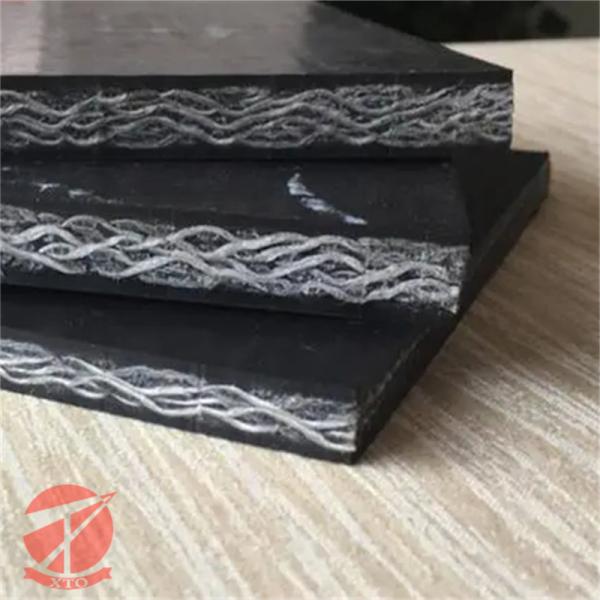

The flame resistant PVG solid woven conveyor belt is composed of an integral core and a flame-retardant rubber and
plastic covering layer, with flame resistant, wear resistant,
anti-tensile and other characteristics. It can operate stably in
high temperature, flammable and other special environments, with
high safety.
The flame resistant PVG solid woven conveyor belt is widely in coal mines, power plants, steel and other fields, and
can be to transport all kinds of ore, coal and other materials to
ensure the smooth progress of the production process. Its flame
retardant performance effectively reduces the risk of fire and
ensures the safety of the working environment.
Characteristics
1. Flame retardant performance: can effectively prevent or delay the spread of fire.
2. Wear resistance: can withstand the wear of materials, extend the service life.
3. Tensile resistance: It has good tensile resistance and is not easy to deformation.
4. Stability: It can maintain stable performance in various working
environments.
5. High safety: reduce the risk of fire and ensure the safety of staff.
6. Adapt to harsh environment: can work normally under high temperature, humidity and other
harsh conditions.
7. Good bearing capacity: can withstand large material weight.
8. Aging resistance: The performance changes less after a long time of use.
Standard Specifications
| Model | Grade | Tensile strength N/mm | Elongation at break ≥% | Width mm |
| Longitudinal | Transversal | Longitudinal | Transversal | |
| 680S | Grade4 | 680 | 265 |
15 |
18 |
500-2000 |
| 800S | Grade5 | 800 | 280 |
| 1000S | Grade6 | 1000 | 300 |
| 1250S | Grade7 | 1250 | 350 |
| 1400S | Grade8 | 1400 | 350 |
| 1600S | Grade9 | 1600 | 400 |
| 1800S | Grade10 | 1800 | 400 |
| 2000S | Grade11 | 2000 | 400 |
| 2240S | Grade12 | 2240 | 450 |
| 2500S | Grade13 | 2500 | 450 |
Rubber Covers
Mine flame retardant: suitable for underground transportation of
flammable and explosive dangerous materials, the average value of
the combustion test is not more than 10 seconds, the single value
is not more than 15 seconds, but also must pass the roller friction
test and roadway propane combustion test.
| Standard | Tensile strength Mpa | Elongation at break % | Abrasion mm³ |
| MT914 | 10 | 350 | 200 |
Applications
- Mining Industry: PVG solid woven conveyor belt is extensively used in the mining sector for the transportation of
various materials such as coal, ores, minerals, and aggregates.
- Power Plants: These conveyor belts find applications in power plants for the
efficient movement of coal and other fuel materials to the
combustion units.
- Steel Industry: PVG solid woven conveyor belt is utilized in steel plants for handling raw materials like iron
ore, limestone, and coke, as well as for transporting finished
products.
- Cement Plants: In cement manufacturing plants, these conveyor belts are employed
for transporting raw materials such as limestone, clay, silica, and
gypsum, as well as for conveying the finished cement products.
- Port Facilities: PVG solid woven conveyor belt play a crucial role in port facilities for the handling of bulk
commodities like coal, grain, and ore during loading and unloading
operations.
- Construction Sites: These conveyor belts are used at construction sites for the
efficient transportation of materials like sand, gravel, and
concrete, enhancing productivity and reducing manual labor.
- Recycling Facilities: PVG solid woven conveyor belt is employed in recycling facilities for the sorting and
transportation of recyclable materials such as plastics, glass, and
metals.
- Agriculture: In agricultural operations, these conveyor belts are utilized for
various tasks such as transporting grains, seeds, fertilizers, and
harvested crops.
- Automotive Industry: Conveyor belts with PVG are used in automotive manufacturing
plants for handling components and parts during assembly processes.
- Warehousing and Distribution: PVG solid woven conveyor belt facilitate the movement of goods and materials within warehouses
and distribution centers, optimizing logistics and supply chain
operations.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have
obtained 27 national utility model patents and 3 invention patents.

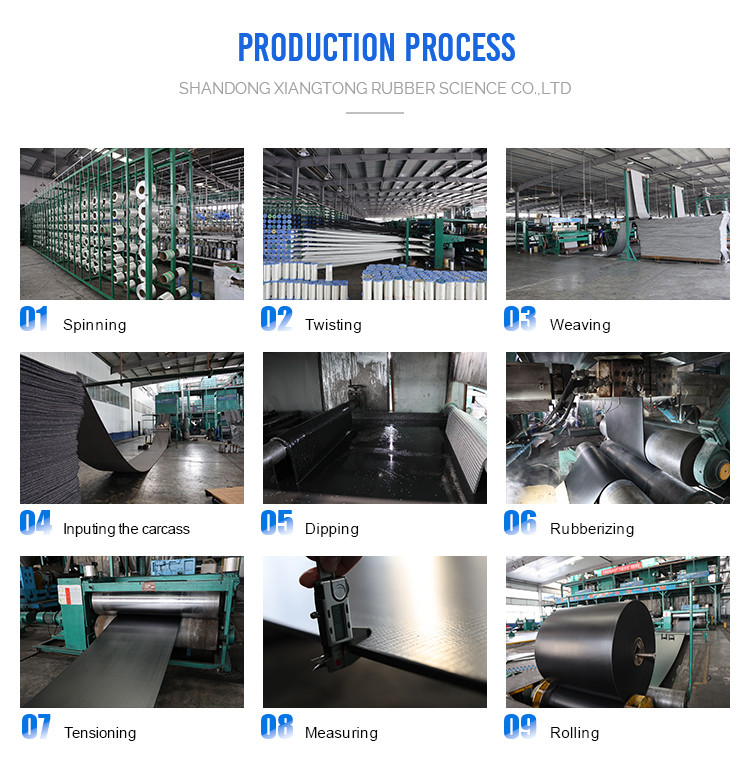

Perfect Testing Equipment
We have a strong ability to develop new products. The company has
an area of 3800 square meters of scientific research building.Four
rubber material laboratories have been established, including
material testing, formula testing, rubber mixing test and finished
product testing, truly realize the strict control testing from raw
materials to finished products, to ensure that the quality of
products to meet the needs of users.
Cooperative Partner
We are proud to have established long-term partnerships with many
outstanding companies. These partners come from different
industries, such as mining, manufacturing, logistics and
transportation. For example, Ordered by Fenner Dunlop, China Shenhua repeatedly.We are committed to providing customers with efficient and reliable
material handling solutions, and through close cooperation, we
realize the sharing of resources and complementary advantages, and
create greater value for customers.
