Usage

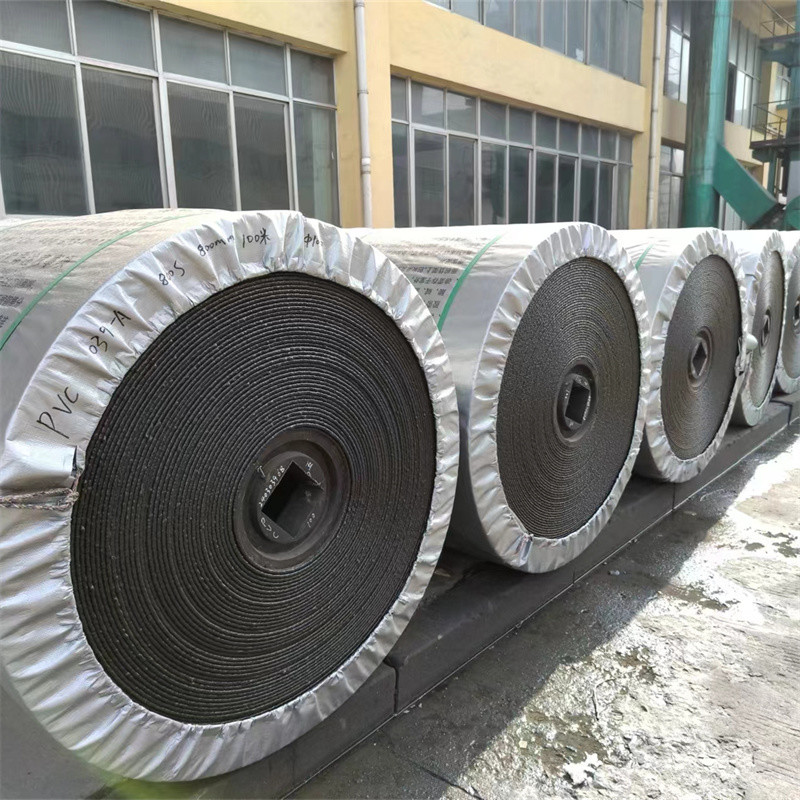

This PVG solid woven conveyor belt is vulcanized by adding rubber cover on the basis of flame
resistant PVC solid conveyor belt. The whole fabric core layer is
made of cotton yarn and nylon or polyester fiber, and then woven
with the weft of more than three layers of the whole fabric
structure, and then plasticized by impregnated PVC core paste.
Characteristics
Vulcanized PVG solid woven conveyor belt has the characteristics of high strength, large volume,
transportation balance, etc. At the same time, the product has good
flame retardant, anti-static, anti-impact, wear resistance,
corrosion resistance and other properties. The strip body is not
delamination, impact resistance, small elongation, tear resistance,
suitable for long distance transportation.
Standard Specifications
| Model | Grade | Tensile strength N/mm | Elongation at break ≥% | Width mm |
| Longitudinal | Transversal | Longitudinal | Transversal | |
| 680S | Grade4 | 680 | 265 |
15 |
18 |
500-2000 |
| 800S | Grade5 | 800 | 280 |
| 1000S | Grade6 | 1000 | 300 |
| 1250S | Grade7 | 1250 | 350 |
| 1400S | Grade8 | 1400 | 350 |
| 1600S | Grade9 | 1600 | 400 |
| 1800S | Grade10 | 1800 | 400 |
| 2000S | Grade11 | 2000 | 400 |
| 2240S | Grade12 | 2240 | 450 |
| 2500S | Grade13 | 2500 | 450 |
Rubber Covers
Mine flame retardant: suitable for underground transportation of
flammable and explosive dangerous materials, the average value of
the combustion test is not more than 10 seconds, the single value
is not more than 15 seconds, but also must pass the roller friction
test and roadway propane combustion test.
| Standard | Tensile strength Mpa | Elongation at break % | Abrasion mm³ |
| MT914 | 10 | 350 | 200 |
Applications
- Mining Industry: Widely used in the mining industry, especially in underground
mines and mining operations, due to its fire-resistant and
flame-retardant properties, providing enhanced safety.
- Chemical Industry: In chemical production processes where conveying of flammable,
explosive, or corrosive materials is common, PVG solid woven conveyor belt offer increased safety and reliability.
- Power Generation: Power plants often require the transportation of coal or other
fuels, where PVG solid woven conveyor belt ensure safe and reliable conveying processes.
- Ports and Logistics: Used in ports and logistics for handling materials such as coal
and ores, where the fire-resistant and flame-retardant properties
of PVG solid woven conveyor belt ensure the safety of the conveying process.
- Other Special Environments: Besides the mentioned industries, PVG solid woven conveyor belt is also suitable for special environments such as subways,
underground passages, and other locations where fire and explosion
prevention are crucial.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have
obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has
an area of 3800 square meters of scientific research building.Four
rubber material laboratories have been established, including
material testing, formula testing, rubber mixing test and finished
product testing, truly realize the strict control testing from raw
materials to finished products, to ensure that the quality of
products to meet the needs of users.
Cooperative Partner
We are proud to have established long-term partnerships with many
outstanding companies. These partners come from different
industries, such as mining, manufacturing, logistics and
transportation. For example, Ordered by Fenner Dunlop, China Shenhua repeatedly.We are committed to providing customers with efficient and reliable
material handling solutions, and through close cooperation, we
realize the sharing of resources and complementary advantages, and
create greater value for customers.
