Usage

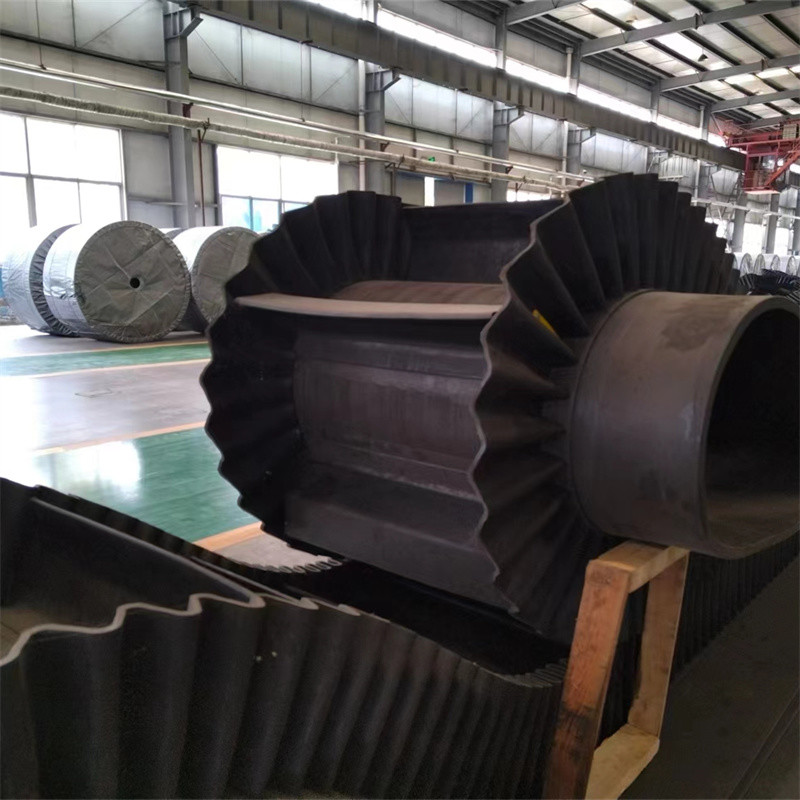

The corrugated steel cord conveyor belt is composed of steel wire rope core, corrugated steel rib and
covering layer. It has the characteristics of high strength
support, large Angle inclined transmission, high load capacity,
good stability, wear resistance and corrosion resistance, long
service life and so on. It can be in mines, ports, cement plants
and other fields, can achieve long distance, large Angle of
material transportation, improve production efficiency, reduce
costs.
Characteristics
1.Unique corrugated design for enhanced carrying capacity
2.Improved material containment and reduced spillage
3.Can be for steep angle conveying up to 90°
4.Suitable for conveying a wide range of bulk materials
5.Highly resistant to extreme temperatures and wear and tear
6.Available in various widths and with customizable options
7.Easy to install and maintain
Specifications
| Model | Tensile Strength(N/mm) | Cord Pitch (mm) | Cord Diameter (mm) | Min Cover thickness (mm) | Width (mm) |
| ST630 | 630 | 10 | 3 | 4 |
800-2400 |
| ST800 | 800 | 10 | 3.5 | 4 |
| ST1000 | 1000 | 12 | 4 | 4 |
| ST1250 | 1250 | 12 | 4.5 | 4 |
| ST1600 | 1600 | 12 | 5 | 4 |
| ST2000 | 2000 | 12 | 6 | 4 |
| ST2500 | 2500 | 15 | 7.2 | 5 |
| ST3150 | 3150 | 15 | 8.1 | 5.5 |
| ST3500 | 3500 | 15 | 8.6 | 6 |
| ST4000 | 4000 | 15 | 8.9 | 6.5 |
| ST4500 | 4500 | 16 | 9.7 | 7 |
| ST5000 | 5000 | 17 | 10.9 | 7.5 |
| ST5400 | 5400 | 17 | 11.3 | 8 |
| ST6300 | 6300 | 19.5 | 12.8 | 10 |
| ST7000 | 7000 | 19.5 | 13.5 | 10 |
| ST7500 | 7500 | 21 | 15 | 10 |
Note: Cover thickness, cord diameter, and cord pitch can be
manufactured according to customer’s requirements.
Sidewall Specifications
The sidewalls are moulded in a high quality rubber.
| Type | Square Ratio | Weight(kgs) | Bottom width |
| S60 | 0.75 | 2.5 | 50 |
| S80 | 0.82 | 3.53 | 50 |
| S100 | 1.42 | 4.18 | 50 |
| S120 | 1.69 | 4.53 | 50 |
| S160 | 2.68 | 8 | 75 |
| S200 | 3.53 | 9.5 | 75 |
| S240 | 5.15 | 12.5 | 75 |
| ES300 | 7.52 | 11 | 100 |
| ES400 | 10.67 | 14.5 | 100 |
| ES500 | 13.82 | 17.6 | |
Cleat Specifications
The cleat is made of high quality rubber, having high elasticity on
the supporting effect.
| Type | Square Ratio | Weight(kgs) |
| TC55 | 0.72 | 1.05 |
| TC75 | 0.81 | 1.2 |
| TC90 | 1.34 | 2 |
| TC110 | 1.76 | 2.3 |
| TC140 | 2.36 | 3.43 |
| TC180 | 3.13 | 4.52 |
| TC220 | 5.63 | 5.8 |
| TC280 | 10.7 | 8.6 |
| TCS360 | 14.45 | 13.6 |
| TCS470 | 28.9 | |
Cover Grades
| Grade | Tensile strength min. (ISO37) Mpa | Elongation at break min. (ISO37) % | Abrasion max. (ISO4649) mm³ |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| L | 15 | 350 | 200 |
Applications
1.Mining and Quarrying: Used for conveying materials like coal, ores, and slag in mining
and quarrying operations.
2.Construction Materials Industry: Suitable for transporting materials such as cement, sand, gravel,
and concrete in construction material plants.
3.Metallurgical Industry: Employed for conveying raw materials like iron ore, coke,
limestone, and by-products generated during smelting processes.
4.Chemical Industry: Used in chemical plants for transporting granular, lumpy, or
powdered chemical materials and products like fertilizers and
plastic granules.
5.Food Processing Industry: Utilized for conveying grains, cereals, and food ingredients in
food processing plants.
6.Environmental Engineering: Applied in waste management and solid waste treatment processes
for transporting waste and recyclable materials.
7.Ports and Logistics: In ports, docks, warehouses, and logistics operations, these
belts are used for loading, unloading, and transporting goods,
particularly in scenarios where spillage and damage prevention are
crucial.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have
obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has
an area of 3800 square meters of scientific research building.Four
rubber material laboratories have been established, including
material testing, formula testing, rubber mixing test and finished
product testing, truly realize the strict control testing from raw
materials to finished products, to ensure that the quality of
products to meet the needs of users.
Cooperative Partner
We are proud to have established long-term partnerships with many
outstanding companies. These partners come from different
industries, such as mining, manufacturing, logistics and
transportation. For example, Ordered by BHP, RIO-TINTO, VALE
repeatedly.We are committed to providing customers with efficient
and reliable material handling solutions, and through close
cooperation, we realize the sharing of resources and complementary
advantages, and create greater value for customers.
