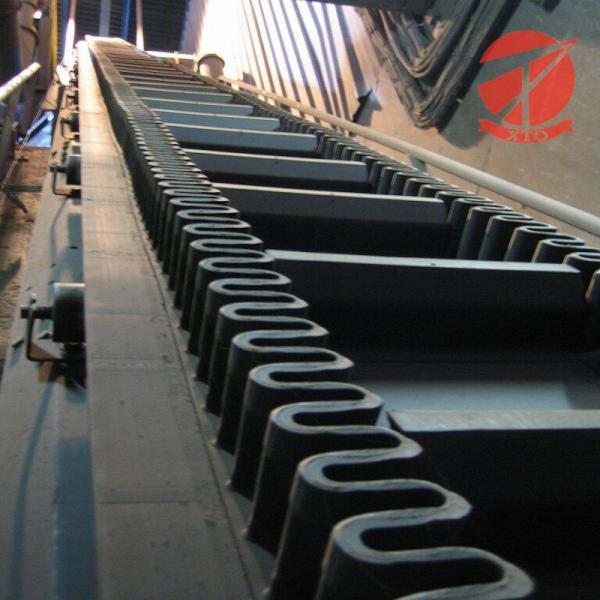

Product Description
The Corrugated Sidewall Belt is an indispensable solution for conveying bulk materials at steep
angles. Its unique design ensures that materials are securely
transported without spillage or loss. This belt is particularly
crucial in industries like mining, construction, and agriculture,
where reliable handling of large quantities of materials is
essential.
The ability of the Corrugated Sidewall Belt to operate at high angles facilitates the transportation of
materials between different elevations. This belt is also ideal for
use in areas with limited space, as it can be configured to take up
less area than traditional conveyors, while still transporting
large volumes of materials efficiently.
Overall, the Corrugated Sidewall Belt is an efficient and reliable component in bulk material handling
systems. Its versatility, durability, and ability to operate under
adverse weather conditions make it an attractive option for
industrial applications.
Features:
1.Innovative Design
The corrugated design of our conveyor belt provides a unique and
enhanced carrying capacity, allowing for the transportation of
heavier loads with ease. This design sets our product apart from
other conveyor belts, as it offers improved material containment
and reduced spillage.
2.Versatile Usage
Our conveyor belt can be used for steep angle conveying of up to 90
degrees, making it an ideal solution for a wide variety of
applications. It is suitable for conveying a wide range of bulk
materials, including but not limited to rocks, minerals, and
grains.
3.Durable and Resistant
The conveyor belt is highly resistant to extreme temperatures and
wear and tear, ensuring you get the most out of your investment.
Our product has been designed and tested to withstand the rigors of
industrial and heavy-duty applications.
4.Customizable Options
Our product is available in various widths and customizable options
to fit your specific needs. We offer a range of materials to choose
from, ensuring that you get the product that best fits your
application.
5.Easy to Install and Maintain
Our conveyor belt is easy to install and maintain, saving you time
and money. Its simple design allows for quick and hassle-free
installation and maintenance, enabling you to get back to work more
efficiently.
Specifications
| Model | Tensile Strength(N/mm) | Cord Pitch (mm) | Cord Diameter (mm) | Min Cover thickness (mm) | Width (mm) |
| ST630 | 630 | 10 | 3 | 4 |
800-2400 |
| ST800 | 800 | 10 | 3.5 | 4 |
| ST1000 | 1000 | 12 | 4 | 4 |
| ST1250 | 1250 | 12 | 4.5 | 4 |
| ST1600 | 1600 | 12 | 5 | 4 |
| ST2000 | 2000 | 12 | 6 | 4 |
| ST2500 | 2500 | 15 | 7.2 | 5 |
| ST3150 | 3150 | 15 | 8.1 | 5.5 |
| ST3500 | 3500 | 15 | 8.6 | 6 |
| ST4000 | 4000 | 15 | 8.9 | 6.5 |
| ST4500 | 4500 | 16 | 9.7 | 7 |
| ST5000 | 5000 | 17 | 10.9 | 7.5 |
| ST5400 | 5400 | 17 | 11.3 | 8 |
| ST6300 | 6300 | 19.5 | 12.8 | 10 |
| ST7000 | 7000 | 19.5 | 13.5 | 10 |
| ST7500 | 7500 | 21 | 15 | 10 |
Note: Cover thickness, cord diameter, and cord pitch can be
manufactured according to customer’s requirements.
Sidewall Specifications
The sidewalls are moulded in a high quality rubber.
| Type | Square Ratio | Weight(kgs) | Bottom width |
| S60 | 0.75 | 2.5 | 50 |
| S80 | 0.82 | 3.53 | 50 |
| S100 | 1.42 | 4.18 | 50 |
| S120 | 1.69 | 4.53 | 50 |
| S160 | 2.68 | 8 | 75 |
| S200 | 3.53 | 9.5 | 75 |
| S240 | 5.15 | 12.5 | 75 |
| ES300 | 7.52 | 11 | 100 |
| ES400 | 10.67 | 14.5 | 100 |
| ES500 | 13.82 | 17.6 | |
Cleat Specifications
The cleat is made of high quality rubber, having high elasticity on
the supporting effect.
| Type | Square Ratio | Weight(kgs) |
| TC55 | 0.72 | 1.05 |
| TC75 | 0.81 | 1.2 |
| TC90 | 1.34 | 2 |
| TC110 | 1.76 | 2.3 |
| TC140 | 2.36 | 3.43 |
| TC180 | 3.13 | 4.52 |
| TC220 | 5.63 | 5.8 |
| TC280 | 10.7 | 8.6 |
| TCS360 | 14.45 | 13.6 |
| TCS470 | 28.9 | |
Cover Grades
| Grade | Tensile strength min. (ISO37) Mpa | Elongation at break min. (ISO37) % | Abrasion max. (ISO4649) mm³ |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| L | 15 | 350 | 200 |
Applications
1.Mining and Quarrying: Used for conveying materials like coal, ores, and slag in mining
and quarrying operations.
2.Construction Materials Industry: Suitable for transporting materials such as cement, sand, gravel,
and concrete in construction material plants.
3.Metallurgical Industry: Employed for conveying raw materials like iron ore, coke,
limestone, and by-products generated during smelting processes.
4.Chemical Industry: Used in chemical plants for transporting granular, lumpy, or
powdered chemical materials and products like fertilizers and
plastic granules.
5.Food Processing Industry: Utilized for conveying grains, cereals, and food ingredients in
food processing plants.
6.Environmental Engineering: Applied in waste management and solid waste treatment processes
for transporting waste and recyclable materials.
7.Ports and Logistics: In ports, docks, warehouses, and logistics operations, these
belts are used for loading, unloading, and transporting goods,
particularly in scenarios where spillage and damage prevention are
crucial.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have
obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has
an area of 3800 square meters of scientific research building.Four
rubber material laboratories have been established, including
material testing, formula testing, rubber mixing test and finished
product testing, truly realize the strict control testing from raw
materials to finished products, to ensure that the quality of
products to meet the needs of users.
Cooperative Partner
We are proud to have established long-term partnerships with many
outstanding companies. These partners come from different
industries, such as mining, manufacturing, logistics and
transportation. For example, Ordered by BHP, RIO-TINTO, VALE
repeatedly.We are committed to providing customers with efficient
and reliable material handling solutions, and through close
cooperation, we realize the sharing of resources and complementary
advantages, and create greater value for customers.
Support and Services
The Corrugated Sidewall Steel Cord Conveyor Belt product offers the following technical support and services:
- Installation guidance and technical support
- Maintenance and troubleshooting assistance
- Product customization and optimization
- Training sessions for product usage and maintenance
Packing and Shipping
Product Packaging:
The Corrugated Sidewall Steel Cord Conveyor Belt is packed in rolls with waterproof materials to prevent any damage
or contamination during transportation. Each roll is securely
fastened and labeled with the product information, including belt
width, length, and thickness.
Shipping:
We offer international shipping for the Corrugated Sidewall Steel Cord Conveyor Belt through reliable and trusted carriers. The shipping time may vary
depending on the destination, but we ensure timely delivery and
provide tracking information for our customers to monitor the
shipment status.
